WLD-UV3040 UV FLATBED PRINTER with High precision, high speed, high-end nozzle. Apply Skeleton triangle welding technology, nozzle collision protection, Bi-direction printing technology, "cellular" adsorption platform, water cooling system.
Can be equipment with Ricoh G5 7 picoliter nozzle
Gray scale all steel piezoelectric nozzle
Variable ink drop minimum 7PL, maximum 35PL
High speed and high precision
Normal service life of up to 3 years
Colorful white varnish can be ejected at the same time
Can print out special effects directly Embossed effect, gold color printing, silver color printing, 3D effect, 4D effect, local varnish
Precise positioning of the beam back and forth The imported grinding screw has high durability and high precision, and the high-precision screw rod av
Imported LED lamp beads with high optical power Life can reach 2-3 million hours
Ricoh uses compressed water cooling technology to achieve good heat dissipation and extend the life of LED lights.
|Nozzle configuration||Ricoh GEN5 1-8 GH2220 industrial nozzle 1-16 Japan epson micro piezoelectric nozzle 1-2|
|Maximum print size||3000mm×4000mm/10*13'|
|Print speed||Ricoh:Four nozzles||sketch model 48m2/H||production 25m2/h||High quality pattern16m2/h|
|Epson:Two nozzles||sketch model 10m2/H||production 6m2/h||High quality pattern3m2/h|
|Print material||Type:Acrylic, aluminum plastic board, wood, tile, foam board, metal plate, glass, cardboard and other plane objects|
|Thickness: 0 mm - 120 mm/0-5"||Uniform weight: 25kg||Maximum size: 3000mm x 4000mm/10*13'|
|Ink type||Blue, magenta, yellow, black, light blue, light red, white, light oil|
|The UV lamp||Ricoh:LED-UV||Two:1500W||life：20000-30000 hours||compression refrigeration cooling|
|Epson:LED-UV||Two:420W||life：20000-30000 hours||water cooling|
|RIP software||PhotoPrint，Monteiro，Ultraprint;Microsoft Windows2000/XP/WIN7|
|Power supply voltage,power||AC220v, hosts the largest 1350 w, LED - the UV lamp's largest 200-1500 w, 1500Wx2 vacuum adsorption platform|
|Image format||Tiff,JEPG,Postscript3,EPS,PDF Etc.|
|Color control||Comply with ICC standard, have curve and density adjustment function.|
|Operating environment||Temperature: 20 ℃ to 28 ℃ humidity: 40% to 60%|
|Apply the ink||Ricoh and LED-UV ink, solvent ink, textile ink|
|The machine size||L 4720mm X W 4530mm X H 1500mm 约1700KG|
|Packing size||L 4920mm X W 4630mm X H 1600mm 约1900KG|

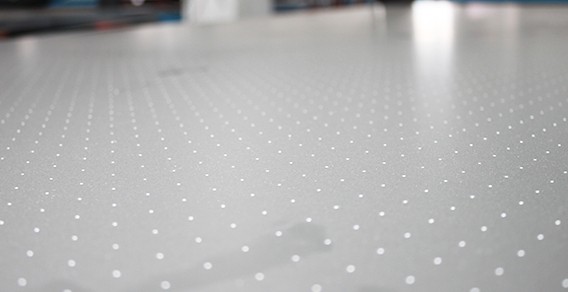

Sectional Vacuum System
This flatbed printer is designed with an adjustable air flow inside the vacuum system, based on the tolerance levels of different materials. The entire system is flat, corrosion resistant and features a uniform vacuum force.
Butt Welding Technology
Thanks to butt welding technology, the machine frame is strong, preventing deformation, even under extreme temperatures and rough transportation, as well as operating stress.
High-Precision lead screw
The printer is also equipped with a high precision lead screw to ensure precise location, as well as ensure ink is ejected into the correct location without any errors.
Large-power Servo Motor
This sign printing solution features an XY axis that is equipped with a 400W AC servo motor. This motor is known for its capacity to provide a large torque, powerful force, precise and blockage free printing, as well as a long lasting and reliable performance. As the Y axis is equipped with a synchronization system, we can ensure accurate synchronization of the left and right lead screws
Imported Led Lights
Due to the use of an advanced LED-UV curing technology, our UV flatbed printers require no preheating, and are capable of operation as soon as they are turned on. Further, the low-heat consumption of the LED-UV lamps feature a service life of 20,000-30,000 hours under normal operation, reducing additional lamp replacement costs.
Commercial Printing Machine, Digital Ink Printer, Wide Format Printer
WLD-UV3040 large format UV Flatbed Printer is suitable for applications such as advertising, glass processing, house decoration, furniture manufacturing, handicraft processing, leather printing, as well as packaging and printing of mobile phone shell, toy, accessories, etc.
|2||Jet board 8 heads||Pcs||No|
|3||Mainboard 8 heads||Pcs||No|
|4||Nozzle transfer board
|5||150 Grating belt||Pcs||No|
|6||150 Grating reading head||Pcs||No|
|8||Secondary ink bottle||Pcs||No|
|14||7W Ink pump||Pcs||No|
|17||White ink stir motor||Pcs||No|
|26||TP02 the inductor||Pcs||No|
|27||Front and back Proximity switch||Pcs||No|
For the above items, there are some consumable parts and some Non vulnerable parts, if you need the exact price, please feel free to contact our sales.
If you have bought our company printers, in order to avoid the printhead and the mainboard damage because of some wrong operation, you should install the printhead correctly in operation and maintenance according to the following way. And refer to the instructions, or under the guidance of the professional engineers operation.
1. Clean and lubricity of guide screw and bearing (3 days)
①.Lubricating grease to ensure that the screw guide clean and lubricity
②.Spray car bearing to keep clean
2. Print heads prior to shutdown state diagram to ensure that the state of the nozzle is normal
3. Closed software, automatic spray car back to protect wet, then turn the power off, keep the car in moisture
4. Boot before every day with a clean cotton swab swab wet special cleaning fluid ink pads and doctor blade, prevent ink drying into pieces, residue on it.
5. Regular cleaning platform redundant ink printing machine work
6. Every print heads before starting the state diagram, maintain nozzle working properly
7. Regularly clean excess ink from the mirror surface of the uv lamp to maintain the curing effect of the uv lamp. Air-cooled heat-dissipating dust and flying ink on the air outlet of the fan and UV lamp (5-7 days) to clean the fan and keep the fan cool. Water cooling should pay attention to the water circulation. The antifreeze should be replaced once a month to keep the antifreeze clean and free of sediment.
